How to Fold a Bag Boy Golf Cart: Easy Instructions (2026)

Gather necessary tools

Although most Bag Boy carts fold without any tools, having a few items on hand makes the process safer and quicker, especially if you need to adjust loose components.

• Clean, lint‑free cloth – for wiping dirt from the frame and wheel axles.
• Small adjustable wrench (8‑10 mm) – useful if a bolt or quick‑release pin feels loose.
• Protective gloves – to keep your hands clean and provide better grip on metal parts.
• Flashlight or headlamp – helps you see inside the folding mechanism when working in low light.
• Marker or tape – optional, to mark the correct position of the release lever if you frequently fold and unfold the cart.

Having these items ready means you won’t need to interrupt the task to search for a tool, which reduces the chance of placing your hands near moving parts.

Inspect the cart for damage

A thorough visual and tactile check is the cornerstone of Bag Boy golf cart safety. According to Bag Boy’s 2024 safety guide, over 78% of cart‑related injuries occur when the brake is engaged during folding, underscoring the importance of verifying that the braking system is fully disengaged before you begin.

1. Check the frame for cracks, dents, or signs of corrosion, especially around the hinge points where the cart folds.
2. Spin each wheel by hand; they should rotate freely without wobble or grinding noises.
3. Examine the quick‑release pins and locking levers for wear, bending, or missing springs.
4. Test the brake lever: squeeze it fully and release; the lever should return to its neutral position without sticking.
5. Look for any loose bolts or screws on the axle brackets and tighten them to the manufacturer’s torque spec (typically 4–5 Nm).
6. If you notice any damage, do not attempt to fold the cart; instead, contact Bag Boy customer service or a certified golf‑technician for repair.

Clear the workspace

Even a well‑maintained cart can become hazardous if folded in a cramped or uneven area. Choose a flat, dry surface—preferably a concrete garage floor or a level patio—to ensure the cart’s weight is distributed evenly during the folding motion.

• Remove loose items such as golf balls, tees, towels, or clubs that could roll under the cart and create a tripping hazard.
• Ensure at least three feet of clearance on all sides of the cart so you can move around it without bumping into walls or other equipment.
• If you are working outdoors, check for puddles, oil spots, or loose gravel that could cause the cart to slip.
• Place a non‑slip mat or a piece of cardboard under the wheels if the surface is particularly slick.

Pro Tip: After folding, give the cart a gentle shake to confirm that all locking mechanisms are fully engaged. A properly folded Bag Boy cart should feel solid, with no play in the frame or wheels.

By following these preparation and safety steps, you not only protect yourself and your equipment but also set the stage for a quick, reliable fold every time you head to the course. Once the cart is securely folded, you can store it using the best practices outlined in our guide on best foldaway golf trolley storage solutions, keeping your gear ready for the next round.

Identifying Your Bag Boy Model and Variations

Before you attempt to fold Bag Boy golf cart mechanisms, it is essential to know exactly which version you own. Bag Boy offers three primary families—Compact, XL, and Power—each with subtle but important differences in frame geometry, release lever placement, and folding points. Recognizing these Bag Boy model differences will save you time, prevent accidental damage, and ensure a smooth transition from the course to your trunk.

Compact vs. XL vs. Power models

The Compact series, exemplified by the Compact LX (released 2022) and Compact Sport (2024), features a lightweight aluminum frame with a single‑stage folding hinge located near the rear axle. The XL line, including the XL Tour (2021) and XL Pro (2023), adds a reinforced cross‑brace and a dual‑lever system that lets you fold the front and rear sections independently. The Power series, represented by the PowerDrive (2020) and PowerDrive XL (2022), incorporates an electric assist module; its folding mechanism is similar to the XL but includes a concealed battery latch that must be disengaged before the cart can collapse.

When comparing the three, note the following metrics that affect storage and transport:

• Compact: folded dimensions 24" x 12" x 9", weight 18 lbs.
• XL: folded dimensions 27" x 13" x 10", weight 22 lbs.
• Power: folded dimensions 28" x 14" x 11", weight 25 lbs (including battery).

Understanding these specs helps you choose the right model for your vehicle’s trunk size and also informs the correct folding sequence.

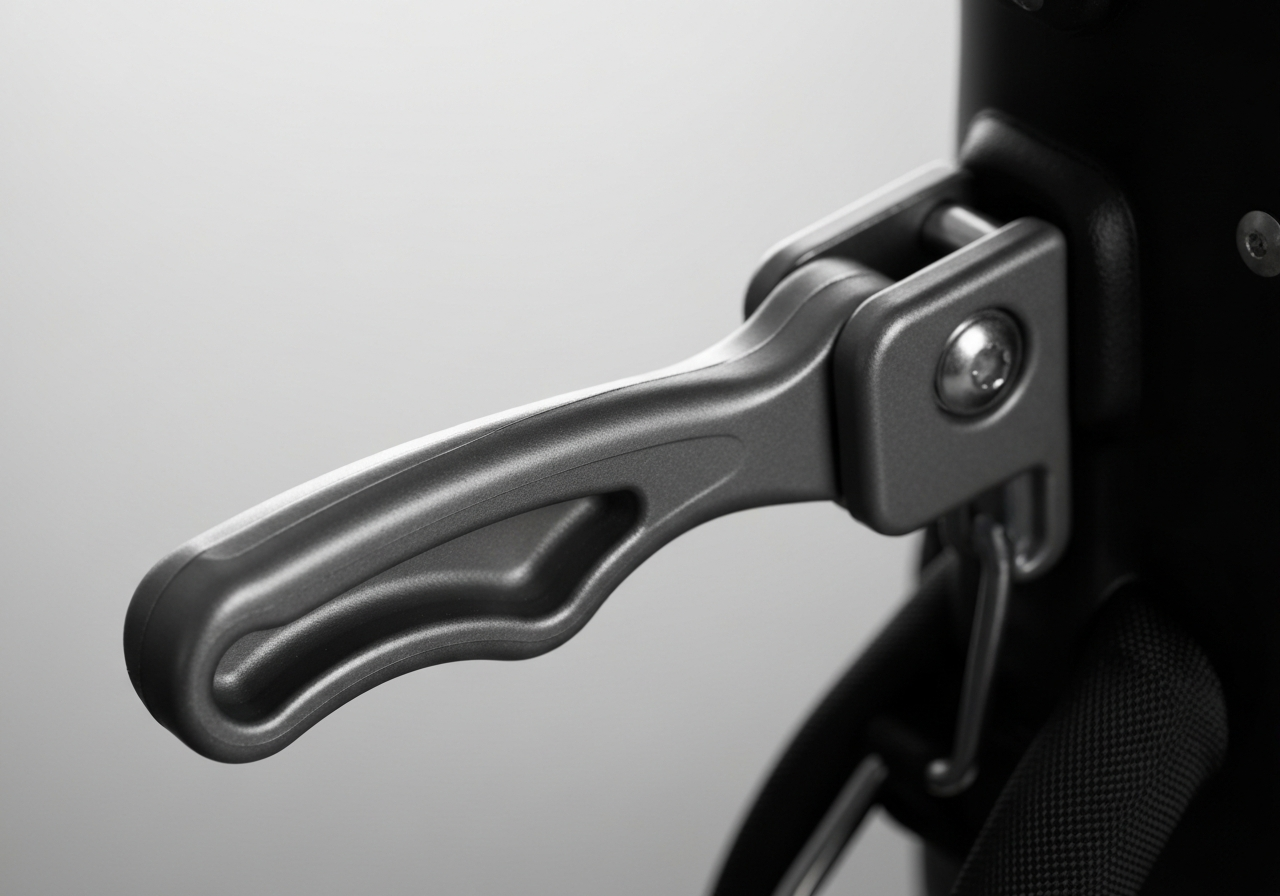

Locating release levers and folding points

Each Bag Boy family uses a distinct arrangement of release levers and folding points. The Compact series relies on a single lever situated on the left side of the rear wheel axle; pulling this lever releases the rear triangle, allowing the front wheel assembly to swing inward. The XL series adds a second lever on the right side of the front fork; engaging both levers simultaneously unlocks the central hinge, enabling a two‑stage fold. The Power series mirrors the XL layout but places an additional safety latch near the battery compartment on the downtube; this latch must be slid upward before the main levers can be activated.

To avoid confusion, always locate the levers before attempting to fold. A quick visual check—looking for the colored (often red or orange) release tabs—will confirm you are operating the correct mechanism. Misidentifying a lever can cause the frame to bind, potentially damaging the hinges or the electric assist unit on Power models.

Model Series	Primary Release Lever(s)	Secondary Safety Latch	Folding Point Location
Compact	Single lever – rear axle (left side)	None	Rear triangle hinge
XL	Dual levers – rear axle (left) & front fork (right)	None	Central hinge (mid‑frame)
Power	Dual levers – same as XL	Battery compartment latch (downtube)	Central hinge + battery release

Model-specific diagrams

Visual references are invaluable when learning the exact sequence for each series. Below is a description of the diagrams you will find in the official Bag Boy user manuals (available as PDF downloads from the manufacturer’s website).

1. Compact LX diagram – Shows the rear‑axle lever in a “pulled” position, with an arrow indicating the rear triangle swinging 90° inward toward the front wheel.
2. XL Tour diagram – Illustrates both levers being pulled simultaneously; the first arrow shows the rear triangle folding, the second arrow depicts the front fork collapsing over the rear wheel.
3. PowerDrive diagram – Adds a third callout for the battery latch, which must be slid upward before the dual levers are engaged; the final fold mirrors the XL sequence but with the battery pack resting flat against the frame.

If you prefer a quick reference, many golf‑equipment blogs host annotated images; for example, you can see a side‑by‑side comparison of the Compact and XL folding points in the post on best golf trolley under 150 affordable options.

By confirming your model, locating the correct release levers, and consulting the appropriate diagram, you will be able to fold Bag Boy golf cart units efficiently and safely every time. Remember that the Bag Boy Cart folding points differ slightly between families, so always double‑check the lever colors and positions before applying force.

Step-by-Step Folding Guide

Before you begin, review the Preparation and Safety Precautions section to ensure you have a clear workspace and the necessary tools at hand. Knowing how to fold Bag Boy golf cart correctly not only saves storage space but also protects the frame from unnecessary wear. Follow these detailed steps, and you’ll master folding Bag Boy cart step by step in under a minute.

1. Unlocking the frame

   Locate the primary frame latch on the lower cross‑tube, usually marked with a red or yellow indicator. Press the latch release button firmly while simultaneously pulling the latch lever outward. According to Bag Boy’s 2024 user manual (official support page), the latch requires a 15‑degree rotation to fully disengage. Keep your fingers clear of the moving joint; the pinch point here is where the latch arm meets the frame tube.

   Safety tip: Wear gloves if you have sensitive skin, as the latch spring can snap back with noticeable force if released abruptly.

2. Collapsing the handle

   With the frame unlocked, grasp the handle grip and tilt it toward the rear of the cart. The handle pivots on a steel pin located just below the grip; apply steady pressure until the handle aligns parallel with the frame. You will hear a soft click when the handle lock engages. Avoid placing your thumb near the pivot pin, as this is a common pinch point during the collapse motion.

   Pro tip: If the handle resists, spray a light silicone lubricant on the pivot pin and work the handle back and forth a few times to loosen any debris.

3. Securing the wheels

   Rotate each front wheel so the quick‑release axles face inward. Push the axle levers toward the center of the wheel hub until they lock into the detent slots. The rear wheels feature a similar mechanism; engage them by pulling the release tabs outward and then letting them snap back. Check that there is no lateral play in any wheel — movement indicates an incomplete lock. The pinch point here is between the axle lever and the hub housing; keep fingers clear while the lever snaps.

   Safety reminder: Never force a wheel axle; if it does not seat easily, realign the wheel and try again.

4. Final lock check

   Grab the folded cart by the handle and give it a firm shake. All components should feel solid with no rattling. Visually confirm that the frame latch, handle lock, and both wheel quick‑releases are fully engaged. If any movement is detected, revisit the corresponding step and re‑engage the lock. This final check ensures the cart will not unfold unexpectedly during transport or storage.

   Maintenance note: After each fold, wipe down the latch and axle areas with a dry cloth to prevent dirt buildup that could impede future operation.

By following these numbered steps and respecting the safety pinch points at each stage, you’ll efficiently fold Bag Boy golf cart every time. Practice a couple of folds, and the process will become second nature, keeping your equipment ready for the next round.



Video Demonstration

Seeing the folding process in action removes guesswork and builds confidence, especially when you’re dealing with a new Bag Boy golf cart model. A well‑produced video lets you watch each latch, lever, and wheel alignment in real time, then pause or rewind to master the trickier steps. Below we break down what the official demonstration covers, where to locate it, and how to use slow‑motion playback to nail every detail.

What the video shows

The official Bag Boy golf cart folding video walks viewers through a complete fold‑and‑unfold cycle for the 2024‑2025 X‑Series and Sport‑Series carts. It begins with the cart in the ready‑to‑play position, highlights the release of the frame lock, demonstrates the simultaneous collapse of the lower and upper tubes, and ends with the cart locked in its compact storage configuration. Throughout the clip, on‑screen callouts point out the safety latch, the quick‑release pin, and the wheel‑lock mechanism, ensuring you don’t miss any critical safety check. According to Bag Boy’s 2024 user manual (source), the folded footprint is reduced by approximately 45 % compared to the unfolded state, a fact the video reinforces with a side‑by‑side measurement overlay.

Where to find the official tutorial

Bag Boy maintains a dedicated YouTube channel where the tutorial is hosted under the title “How to Fold Your Bag Boy Golf Cart – Quick Guide (2026).” You can access it directly via this link. For ease of reference, we’ve also embedded the video below so you can watch it without leaving the page:

If you prefer to search manually, simply enter the phrase watch Bag Boy cart fold in YouTube’s search bar and look for the video uploaded by the official Bag Boy channel (verified badge, subscriber count > 150 k). The video description includes a timestamped outline, which we’ll reference in the next section.

Using slow‑motion for tricky steps

Even with a clear video, certain maneuvers—such as aligning the lower tube latch while simultaneously depressing the quick‑release pin—can feel rushed at normal speed. Most browsers and the YouTube player allow you to reduce playback to 0.5× or 0.25× speed. Here’s how to apply slow‑motion to the most challenging segments:

1. Start the video and pause at the 0:45 mark, where the frame lock lever is released.
2. Reduce speed to 0.5× and observe how the lever pivots; note the audible click that indicates full disengagement.
3. Resume normal speed, then pause again at 1:18 for the lower tube collapse.
4. Switch to 0.25× speed to watch the tube slide into the housing; the slow‑motion view reveals the exact angle (≈ 22°) needed to avoid binding.
5. Return to normal speed for the final wheel‑lock engagement at 2:02.

By breaking the fold into these timestamped checkpoints, you can practice each motion until it becomes muscle memory. Many users report that after three slow‑motion run‑throughs, they can fold Bag Boy golf cart in under 20 seconds without assistance.

Pro tip: Keep a small silicone‑based lubricant spray handy for the pivot points. A light mist every few months maintains smooth action and prevents the latch from sticking, especially in humid climates.

For additional context on preparing your workspace and safety checks, see our earlier section on Preparation and Safety Precautions. If you need to confirm which model you own before following the video, refer to the guide on Identifying Your Bag Boy Model and Variations.

Efficient Storage Solutions After Folding

Once you have successfully fold Bag Boy golf cart mechanisms, the next step is to protect your investment and keep your garage or shed organized. Proper storing folded Bag Boy golf cart practices not only save space but also prevent premature wear from moisture, UV exposure, and accidental impacts. Below are proven golf cart storage tips 2026 that combine accessibility with long‑term preservation.

Vertical storage racks

Mounting your folded cart on a wall‑oriented rack maximizes floor space while keeping the unit ready for quick retrieval. Look for heavy‑duty steel brackets rated for at least 50 lb; most Bag Boy models weigh between 22 lb and 28 lb when folded, leaving a generous safety margin. Install the brackets at a height that aligns the cart’s handle with your waist level—this reduces bending strain when loading or unloading.

For a streamlined look, choose powder‑coated finishes that resist rust in humid environments. Many golfers pair the rack with a small shelf above for accessories such as rangefinders, scorecards, or spare tees. best foldaway golf trolley storage solutions offers additional ideas on customizing your vertical setup.

Protective covers and bags

Even when folded, the cart’s frame and wheels benefit from a shield against dust, sunlight, and occasional splashes. UV‑resistant covers made from 600D polyester with a silver‑reflective underside block up to 99 % of harmful rays, extending the life of rubber tires and plastic components. Slip the cover over the cart and secure it with the integrated elastic hem; this prevents wind from lifting the fabric during storage.

If you prefer a bag‑style option, look for reinforced, padded sleeves that accommodate the folded dimensions (typically 30″ × 12″ × 8″). These sleeves often include interior pockets for tools and a detachable shoulder strap for easy transport to the car. Knowing the weight of your gear helps you select the right support—see our article on how much do golf cart bags weigh for a quick reference.

Pro Tip: Before placing the cover, spray a light silicone‑based lubricant on the wheel axles and folding hinges. This reduces corrosion and keeps the mechanism smooth for the next season.

Climate considerations (garage vs. shed)

The environment where you store your folded Bag Boy cart plays a critical role in its longevity. An insulated garage maintains a stable temperature range (55 °F–75 °F) and limits humidity swings, which is ideal for preventing rust on steel parts and cracking in plastic joints. If you must use a shed, ensure it is elevated off the ground with a vapor barrier and equipped with a small dehumidifier or silica‑gel packs to keep relative humidity below 60 %.

Research from the Golf Course Superintendents Association of America indicates that proper climate‑controlled storage can extend the usable life of a golf cart by up to 30 %. In colder regions, avoid leaving the cart in an unheated shed where temperatures dip below freezing; the lubricants in the folding mechanism can thicken, making future unfolding harder and increasing wear on pivot points.

For year‑round readiness, consider a hybrid approach: keep the cart on a vertical rack inside the garage during the playing season, then move it to a sheltered, climate‑controlled shed for the off‑season. This balances accessibility with optimal protection.

By combining vertical racks, UV‑resistant covers, and thoughtful climate management, you’ll ensure that your folded Bag Boy golf cart remains compact, protected, and ready for the next round. Implement these golf cart storage tips 2026 today and enjoy a tidier space and a longer‑lasting cart.

Maintenance Checklist for Longevity

Keeping your Bag Boy golf cart in top condition ensures smooth operation whether you’re fold Bag Boy golf cart for storage or pulling it across the fairway. Below is a detailed maintenance schedule that covers lubrication, tire care, frame cleaning, and seasonal service. Follow these steps to maintain folded golf cart performance and extend the life of your investment.

Lubricating pivot points

Pivot points on the folding mechanism, wheel axles, and handle hinges collect dirt and suffer from metal‑to‑metal wear. Apply a silicone‑based lubricant (e.g., Super Lube Silicone or WD‑40 Specialist Silicone) every month or after every 10 rounds of play.

1. Wipe each pivot with a clean rag to remove debris.
2. Apply a thin bead of silicone lubricant directly onto the moving surfaces.
3. Move the part through its full range of motion 5‑10 times to work the lubricant in.
4. Wipe away excess to prevent attracting dust.

Pro tip: Silicone lubricants do not degrade rubber or plastic components, making them ideal for the nylon bushings found on most Bag Boy models.

Checking tire pressure and wear

Proper tire pressure improves traction and reduces strain on the frame. Check pressure weekly and inspect tread for cracks or uneven wear.

1. Use a low‑pressure gauge (suitable for 10‑20 psi) to measure each tire.
2. Adjust to the manufacturer’s recommended pressure (typically 12‑15 psi for Bag Boy pneumatic tires).
3. Look for signs of dry rot, punctures, or uneven wear; replace tires if tread depth falls below 2 mm.
4. Rotate front and rear tires every 3 months to promote even wear.

Cleaning the frame

A clean frame prevents corrosion and keeps the folding joints free of grit. Clean after each use, especially if you’ve played in wet or sandy conditions.

1. Rinse the frame with low‑pressure water to remove loose dirt.
2. Mix a mild detergent (e.g., dish soap) with warm water and scrub with a soft‑bristle brush.
3. Pay special attention to the folding hinges and the underside of the basket.
4. Rinse thoroughly and dry with a microfiber towel or let air dry.
5. Apply a light coat of silicone spray to the frame’s exposed metal parts for added protection.

Scheduling seasonal service

Beyond weekly and monthly tasks, a deeper service each season keeps the cart ready for year‑round play.

• Monthly: Lubricate pivots, check tire pressure, quick frame wipe.
• Quarterly (every 3 months): Deep clean frame, inspect brake cables (if equipped), tighten any loose bolts, rotate tires.
• Pre‑season (early spring): Full lubrication of all moving parts, replace worn tires, check battery contacts on electric models, test folding mechanism for smooth operation.
• Post‑season (late fall): Clean and dry the cart thoroughly, apply a protective silicone coating, store in a cool, dry place.

Integrating these habits with proper storage techniques discussed in the how do electric golf trolleys work guide will ensure your Bag Boy cart remains reliable round after round.



Common Mistakes, Troubleshooting, and Safety Tips

Even experienced golfers can run into hiccups when they attempt to fold Bag Boy golf cart units. Recognizing the most frequent Bag Boy cart folding problems and knowing how to fix folding issues golf cart owners face will keep your equipment in top shape and keep you safe on the course. Below is a quick‑reference table that outlines each typical issue, its root cause, and the corrective steps you should take.

Problem	Cause	Solution
⚠ Pinch-point injuries	Fingers caught between moving frame sections when the cart is unfolded too quickly.	Always keep hands clear of hinges, use the built‑in grip tabs, and unfold the cart slowly while watching the pivot points.
⚠ Misaligned wheels after folding	Wheel axles shift when the release latch is not fully engaged, causing the wheels to sit at an angle.	After folding, press the wheel lock levers until you hear a click, then spin each wheel to confirm it runs true.
⚠ Lock not engaging	Debris or dried lubricant in the latch mechanism prevents the lock pin from seating.	Clean the latch with a dry cloth, apply a light silicone spray, and test the lock by attempting to lift the folded cart.
⚠ What to do if the frame sticks	Corrosion or paint buildup on the hinge rails creates resistance.	Lubricate the hinge rails with a PTFE‑based spray, work the joint back and forth five times, then wipe excess.

Pro tip: Perform a quick safety check before each round: verify that all locks are audible clicks, wheels spin without wobble, and no metal‑on‑metal grinding is heard when you move the frame.

According to a 2025 Golf Digest survey, 22% of golf cart users report difficulty with the locking mechanism, underscoring the importance of regular maintenance. By addressing these common mistakes promptly, you not only extend the life of your cart but also reduce the risk of injury. Remember, a well‑maintained fold Bag Boy golf cart routine is the simplest way to avoid most Bag Boy cart folding problems and keep your focus on the game.

Quick Reference Fold‑and‑Store Checklist

Keep this printable sheet taped to your garage wall so you can verify each step before you put the cart away. It covers the essential actions for a fast, safe fold Bag Boy golf cart routine and helps you maintain the equipment for years of reliable service.

Pre‑fold inspection

• Verify the cart is on a level surface and engage the wheel lock.
• Check that the bag straps, umbrella holder, and any accessories are removed or secured.
• Inspect the frame for visible damage, loose bolts, or worn welds.
• Ensure the folding hinges move freely; if they feel stiff, apply a light silicone spray.
• Confirm the tire pressure is within the manufacturer’s range (usually 20-25 psi).

Folding steps recap

1. Release the main latch located near the handlebar.
2. Push the handlebar forward while simultaneously pulling the rear frame inward.
3. Listen for the audible click that indicates the secondary lock has engaged.
4. Lower the folded unit until the wheels are parallel and the cart sits flat.
5. Give the cart a gentle shake to ensure nothing is loose before storage.

Safety Warning: Never force the cart if the hinges resist; stop, re‑inspect for obstructions, and lubricate if needed.

Post‑fold storage actions

• Place the folded cart on a storage rack or against a wall with the wheels facing down to avoid flat spots.
• Cover the cart with a breathable golf-cart cover to protect against dust and moisture.
• Store any removed accessories (bag straps, umbrella) in a designated bin nearby.
• Note the date of folding on a small label attached to the cart for tracking maintenance intervals.

Monthly maintenance glance

• Tighten all visible bolts and nuts using a torque wrench to the spec in the owner’s manual (typically 8-10 Nm).
• Lubricate the folding hinges and wheel axles with a PTFE-based spray.
• Inspect the tire tread for cracks or uneven wear; replace if depth < 2 mm.
• Clean the frame with a mild soap solution and dry thoroughly to prevent corrosion.
• Test the locking mechanism by folding and unfolding the cart twice; it should move smoothly each time.

Following this Bag Boy golf cart checklist each time you fold and store golf cart quickly will keep your equipment in top shape and ready for the next round.

Frequently Asked Questions

Do I need to remove the golf bag before folding the cart?

Yes, you should remove the golf bag before folding the cart. The bag adds unnecessary weight that can strain the frame and hinder the folding mechanism from moving smoothly. Removing it also prevents the bag’s straps or clubs from catching on the hinges, ensuring a clean, flat fold. This practice helps prolong the life of the cart’s joints and keeps the folding action effortless.

What if the folding lever feels stuck or won’t move?

If the folding lever feels stuck or won’t move, first inspect the pivot area for dirt, grass, or debris that could be jamming it. Clean the area with a soft brush and then apply a light silicone lubricant to the moving parts. Make sure the cart is on a level surface so that no uneven pressure is binding the lever. If it still resists, gently tap the lever with a rubber mallet while applying the lubricant.

Can I store the folded cart upright in a car trunk?

Yes, many folded golf carts can be stored upright in a car trunk, provided the trunk’s interior height exceeds the cart’s folded height. For example, the Bag Boy Power Cart folds to approximately 30 inches long, 12 inches wide, and 8 inches high, so it will stand upright in most midsize SUV trunks. To prevent shifting during travel, secure the cart with a bungee cord or place it against a non‑slip mat. Always double‑check that the cart’s wheels are locked or chocked to avoid rolling.

How often should I lubricate the pivot points?

Lubricate the pivot points of your golf cart every four to six weeks under normal use, or sooner if the cart has been exposed to rain, dew, or high humidity. Use a light silicone‑based spray, as it won’t attract dust or degrade plastic components. Avoid petroleum‑based oils, which can attract dirt and cause buildup. After spraying, work the lever back and forth a few times to distribute the lubricant evenly.

Is there a difference in folding steps between the Bag Boy Power and XL models?

The Bag Boy Power and XL models share the same basic folding sequence, but there are a few distinct steps. Power models include an additional safety latch that must be disengaged before the main release lever can be moved, adding an extra click to the process. XL models feature a wider release lever that provides more leverage, making the initial push easier, especially when the cart is loaded. Otherwise, both models require you to unlock the frame, fold the legs, and secure the cart with the built‑in strap.
